How to Choose a Rotary Vane Vacuum Pump

A rotary vane vacuum pump can be a dependable choice for laboratories, packaging lines, and maintenance workshops. The right model depends on more than its advertised pumping speed. Vacuum level, gas load, operating hours, and the process environment all affect performance. A pump that works well on a clean test bench may struggle when exposed to frequent starts or water vapor. Small details matter.

Start by checking the required ultimate pressure and the chamber’s volume. Then compare pumping speed at the pressure range your process actually uses, rather than relying only on a headline rating. Consider whether an oil-sealed design suits your application, and review oil-change intervals, filtration, noise, and available service support. For example, a pump beside a heat-sealing machine may need regular checks for oil condition and exhaust mist. A unit running intermittently in a small laboratory has different demands. That is not always obvious.

Manufacturer data sheets provide a useful basis for comparison, but they do not replace application-specific advice. Confirm gas compatibility, inlet conditions, cooling needs, and the recommended protection against liquid or particulate carryover. If the duty cycle or vapor load is uncertain, ask the supplier to review those details before purchase. A slightly larger pump is not automatically better; it may use more energy without solving the real constraint. This guide explains how to weigh these factors and choose a rotary vane vacuum pump that fits the process, maintenance plan, and budget. The final choice deserves a careful second look.

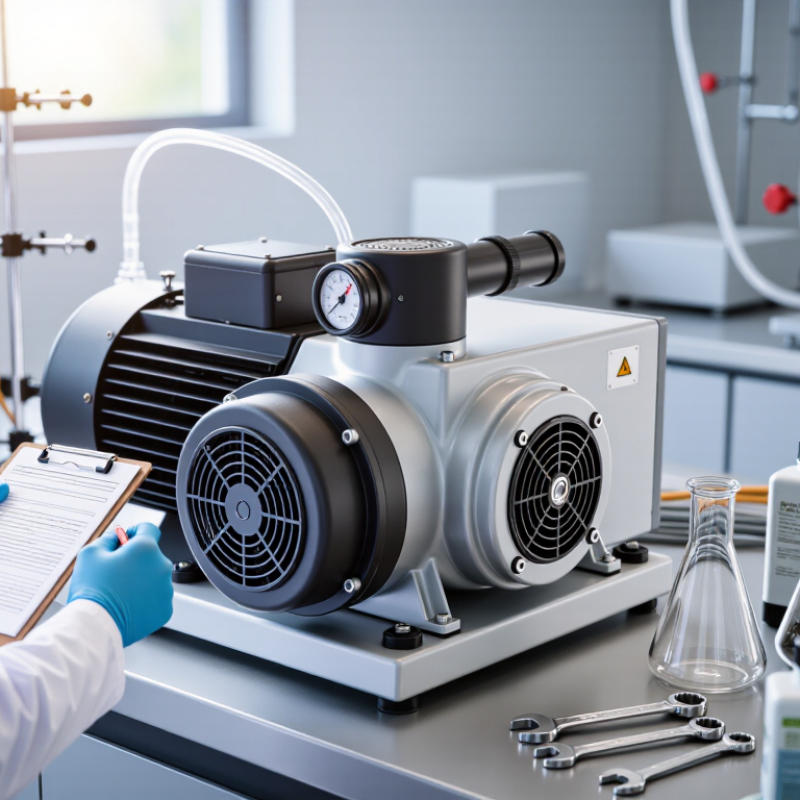

How to Choose a Rotary Vane Vacuum Pump

Set the Vacuum Target: 1 mbar = 100 Pa; Separate Ultimate from Working Pressure

Set the required chamber pressure before comparing rotary vane pumps. NIST Special Publication 811 defines the SI conversion: 1 mbar equals 100 Pa. But the number alone does not describe the duty. A pump’s ultimate pressure is its lowest pressure under specified test conditions, often without process gas entering. Working pressure is the pressure it can sustain while handling gas, vapor, leaks, and chamber outgassing. They are not interchangeable.

Read the test conditions. ISO 21360-2:2020 sets methods for measuring positive-displacement vacuum-pump performance, including rotary pumps. Compare reported ultimate pressure and pumping speed using consistent measurement conditions, then check performance at your actual operating pressure. A chamber may need 5 mbar during a process even when a pump’s ultimate rating is far lower. That gap matters. At higher gas loads, pressure can rise, and vapor may call for gas-ballast operation. Check the chamber gauge location, too; pressure at the pump inlet may not match pressure at the workpiece. Real systems are less tidy than datasheets suggest. A little margin helps, but oversizing without checking the duty can waste energy.

Size the Pump: Use S = (V/t) ln(P₁/P₂) for Ideal Pump-Down

How to Choose a Rotary Vane Vacuum Pump

Size the Pump: Use S = (V/t) ln(P₁/P₂) for Ideal Pump-Down

For an ideal pump-down, use S = (V/t) ln(P₁/P₂), where V is chamber volume, t is target time, and P₁ and P₂ are starting and final pressures.

Keep pressure units consistent. Consider a 120-liter chamber dropping from 1,000 to 10 millibar in 60 seconds. The calculation gives 0.0092 cubic meters per second, or about 33 cubic meters per hour. That is the required effective speed at the chamber, not automatically the pump’s nameplate rating.

CERN Accelerator School vacuum-course materials discuss this exponential pump-down relationship; the calculation assumes constant pumping speed and no leaks or gas release from surfaces.

Real systems are less tidy. Narrow hoses, elbows, and valves restrict conductance, while moisture or outgassing adds gas load. ISO 21360-1:2020 specifies standardized methods for measuring vacuum-pump performance, a useful reminder to compare tested performance rather than rely only on catalog figures.

Allow margin for the actual plumbing and process, then check the expected operating pressure against the pump’s performance curve. The model is elegant. Reality is messier. A quick estimate can still be useful, but I would treat it as a starting point, not a promise: chamber volume alone does not capture every delay.

Match Gas and Moisture Loads: Check Water-Vapor Tolerance and Gas-Ballast Data

How to Choose a Rotary Vane Vacuum Pump

Match Gas and Moisture Loads: Check Water-Vapor Tolerance and Gas-Ballast Data

A rotary vane pump handling damp air needs more than a low ultimate-pressure rating. Check its maximum water-vapor pressure and water-vapor capacity with gas ballast operating. These figures describe different limits: pressure indicates whether vapor can pass through without condensing, while capacity indicates how much moisture the pump can remove over time. Compare both figures under the same operating conditions, including inlet temperature and oil temperature. Small numbers matter. The NIST Chemistry WebBook lists water’s saturation vapor pressure at about 2.34 kPa at 20°C and 7.38 kPa at 40°C. A warmer process stream can therefore carry substantially more water vapor into the pump.

Gas ballast introduces a controlled amount of air or another suitable gas during compression, helping reduce vapor condensation inside the pump. For a practical selection, estimate the moisture load from the process, then compare it with the manufacturer’s stated water-vapor capacity and ballast operating data. ISO 21360-2 provides methods for measuring rotary positive-displacement vacuum-pump performance; use comparable test conditions when reviewing published figures.

Not just ultimate pressure.

One easy-to-miss assumption is that a pump’s maximum vapor tolerance applies at every temperature and duty cycle. It may not. If the data sheet omits conditions, ask for clarification before sizing the pump, and allow margin for startup moisture or changing ambient humidity.

Compare Pump Curves: Confirm Effective Speed at the Operating Pressure

When comparing rotary vane vacuum pump curves, look for effective pumping speed at your actual operating pressure—not just the rated speed at the inlet. A pump may move air quickly near atmospheric pressure, yet deliver much less speed as pressure falls. That distinction matters. Read the curve at the pressure your process needs to hold, and check whether the stated units and test conditions match your setup.

For example, if your chamber runs near 10 mbar, compare each candidate’s speed at 10 mbar. Do not use its peak rating as a substitute. Also account for the line between the chamber and pump. Narrow tubing, elbows, and filters restrict flow, reducing the speed available at the chamber. In practical terms, the installed system can perform below the pump curve. A small trap.

Check how the curve was measured, including the gas used and whether gas ballast was enabled. Gas ballast can affect performance, especially when handling vapor, so the best comparison depends on the process. Leave a reasonable margin for leaks, changing loads, and future plumbing changes, but avoid sizing by guesswork alone. Curves can be hard to interpret, and published data may not show every condition. If a point is unclear, ask for the test basis or verify performance with a suitable gauge after installation.

How to Choose a Rotary Vane Vacuum Pump

Compare Pump Curves: Confirm Effective Speed at the Operating Pressure

These representative, illustrative curves show how effective pumping speed can vary with inlet pressure; they are not specifications for a particular pump. At the pressure where your process operates, compare the curve value with the speed required at the chamber. Also account for inlet-line conductance, gas load, and the pump’s ultimate pressure when selecting a pump.

Verify Performance Data Using ISO 21360-1:2020 Measurement Methods

When choosing a rotary vane vacuum pump, compare measured performance, not just motor power or a headline “maximum vacuum” figure. ISO 21360-1:2020 provides general methods for measuring vacuum-pump performance, including volume flow rate and ultimate pressure. Ask for the test method and conditions behind every quoted value. Small details matter.

Check whether the data were taken with gas ballast open or closed, and whether the pump was warm and stabilized. These conditions can change the result, especially the reported ultimate pressure. Request a curve showing pumping speed across several inlet pressures, rather than one point. A consistent comparison might include 10, 1, and 0.1 mbar, clearly labeled as buyer-selected checkpoints, not mandatory ISO test pressures. Also confirm the gas tested and the pressure-gauge location. That matters.

A curve can look convincing and still leave gaps. I would question figures without test conditions, even when they come from a polished datasheet. Not always. Cross-check ISO 21360-1:2020-based results against your process needs, including gas load and expected operating pressure. If the supplier cannot provide comparable measurements, treat the published number as an estimate, not a verified selection value.

How to Choose a Rotary Vane Vacuum Pump - Verify Performance Data Using ISO 21360-1:2020 Measurement Methods

Use this guide to compare rotary vane pump specifications and identify the performance data to verify. ISO 21360-1:2020 provides general methods for measuring vacuum-pump performance; request test conditions and results for the specific pump being considered.

Selection Dimension Typical Data or Useful Range What to Check in the Performance Data Selection Guidance
Pumping speed Commonly specified in m³/h or L/s. Conversion: 1 m³/h = 16.67 L/s. Check the pumping-speed curve across the operating inlet-pressure range, not only a single nominal value. Confirm the measurement method and test conditions. Estimate the required speed from system volume, desired pump-down time, process gas load, and conductance losses in the connecting pipework.
Ultimate pressure Indicative catalogue ranges are approximately 0.1–1 mbar for many single-stage designs and 0.001–0.01 mbar for many two-stage designs. Actual values vary by pump and test conditions. Confirm whether the stated value is total pressure or partial pressure, and whether it is an ultimate-pressure or blank-off result. Check the measurement instrument and stabilized test conditions. Choose a two-stage design when a lower base pressure is required. Compare values measured using equivalent methods and conditions.
Pressure units 1 mbar = 100 Pa; 1 Pa = 0.01 mbar. Check that values are reported in consistent units and that any conversions are correct. Keep the system target, pump specification, and instrument readings in the same pressure units during comparison.
Operating pressure range Specified as a pressure interval; the usable range depends on the pump design, gas load, and thermal limits. Review the speed curve, maximum continuous inlet pressure, and any restrictions on continuous operation at higher pressures. Confirm that the pump can handle both the initial roughing stage and the normal process pressure without exceeding its operating limits.
Gas and vapor load Depends on the process gas, vapor concentration, inlet temperature, and operating pressure. Check gas-ballast guidance, water-vapor tolerance, and any stated limits for condensable vapors or corrosive gases. For wet processes, use appropriate gas ballast and operating procedures. Confirm material and oil compatibility for process gases.
Power and electrical supply Motor input is reported in W or kW; voltage, phase, and frequency depend on the motor configuration. Check rated input power, starting current, supply requirements, and whether the rating applies at the specified operating conditions. Match the motor and electrical supply to the installation, available protection, and expected duty cycle.
Oil management Oil consumption and mist-filter performance are design- and application-dependent; request documented values where relevant. Check oil type, oil-change interval, exhaust-filter requirements, and the conditions used for any oil-carryover claim. Allow for oil servicing and exhaust treatment, especially where the pump operates continuously or near personnel and products.
Noise and installation Sound pressure is normally reported in dB(A), with measurement distance and operating conditions stated. Check the reported test setup, cooling-air clearances, ventilation needs, and recommended installation orientation. Consider room ventilation, vibration isolation, service access, and exhaust routing as part of the pump selection.
Maintenance and duty Service intervals vary with pump design, oil condition, operating hours, and process contamination. Review the duty rating, maintenance schedule, consumables, and performance limits under continuous operation. Choose a configuration that can maintain the required performance with the available service access and maintenance resources.

Data note: The pressure ranges above are broad, indicative ranges for pump selection—not guaranteed values or results for a particular model. Ask for model-specific test data, the measurement procedure, operating conditions, and uncertainty information before making a final comparison.
